Dublin/Pleasanton (sometimes called East Dublin/Pleasanton to avoid confusion with the West Dubiln/Pleasanton infill station, that was its original name until the West station was postponed) is the terminus of the Dublin/Pleasanton Line. This station is the end of a 14 mile branch with only one intermediate station originally Castro Valley in the median of the I-580 Freeway that opened on May 10, 1997. This station is a hub for the growing Tri-Valley Region with a huge 7 story parking garage with 2,973 parking spaces. There are also bus loops on both sides of the station used for local and express connecting bus routes from five different agencies including local LVTA Wheels buses and Modesto MAX and San Joaquin RTD Commuter service to Stockton for super-commuters into the San Joaquin Valley. Amtrak California San Joaquin Connecting buses running between Stockton and San Jose also stop at Dublin/Pleasanton. The name of the station comes from the fact that the freeway runs along the border of the City of Dublin (north) and the City of Pleasanton. More recently a transit oriented development has been built (and is expanding) on the Dublin Side of the station.

The station itself has a single island platform with the two tracks continuing beyond it. It is here that there is a diamond cross-over and the two tail tracks continue that can accommodate a couple of trainsets back to back. All terminating trains discharge their passengers, leaving service before continuing down these trail tracks as their relay moves to reenter service. The station has the more modern 1990s design similar to the couple beyond Concord at the end of the Pittsburg/Bay Point Branch. The platform has a wavy canopy over the center of the platform held up by concrete pillars with blue underlying beams holding the canopy up. The exposed portions of the platform have tall silver lampposts and a grey central beam between the lampposts. Under this canopy is an elevator and three sets staircase/escalators down to a ground-level fare control area. Here (at the east side of the concourse, be towards the front of the train) are the fare gates that lead out (still beneath the train tracks in the median of I-580) to a single entrance on the east side of Demarcus Boulevard in its underpass beneath BART and the highway (at an angle) and sidewalks to either the Dublin or Pleasanton sides of the station.

Passengers walking to the the Dublin Side of the station cross narrow Demarcus Blvd to a small pedestrian plaza with some benches for passengers waiting for buses and rides. In this plaza are a couple of blue arches with the BART logo on them. Going straight is the station's main bus loop with a blue canopy similar to the platform. The bus loop has a long line of stops for buses, and buses stop on each side of the canopy. Going the other direction (along Iron Horse Parkway) is the station's main 7 story parking garage ($1 Fee) with four sets of elevators in the orange tower with a BART logo on top closest to the BART station. There are a few other towers just with stairs plus the usual parking ramps. A few other parking lots surround the station area and Vacant land is slowly being built up with new townhouses and other forms of transit oriented development. New subdivisions are in the area beyond the station. The Pleasanton Side is more simple (and more built up). It has Demarcus Blvd turn and run east parallel to the BART station. There is a covered walkway that has some more bus stops (as well as private shuttles) and more parking lots south to Owens Drive. Along Owens Drive is a suburban Office Park for Oracle and more subdivisions.
Photo 1-10: 20 March, 2008, 12-40: 11 June, 2013

Page 1|Page 2

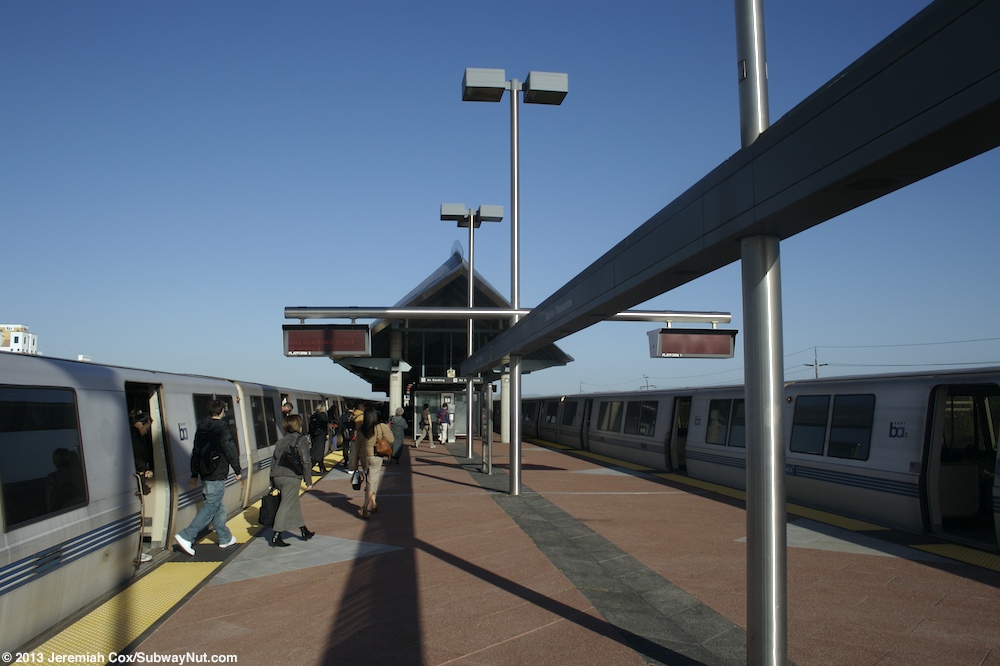

dublin_pleasanton1
Passengers get off a terminating train

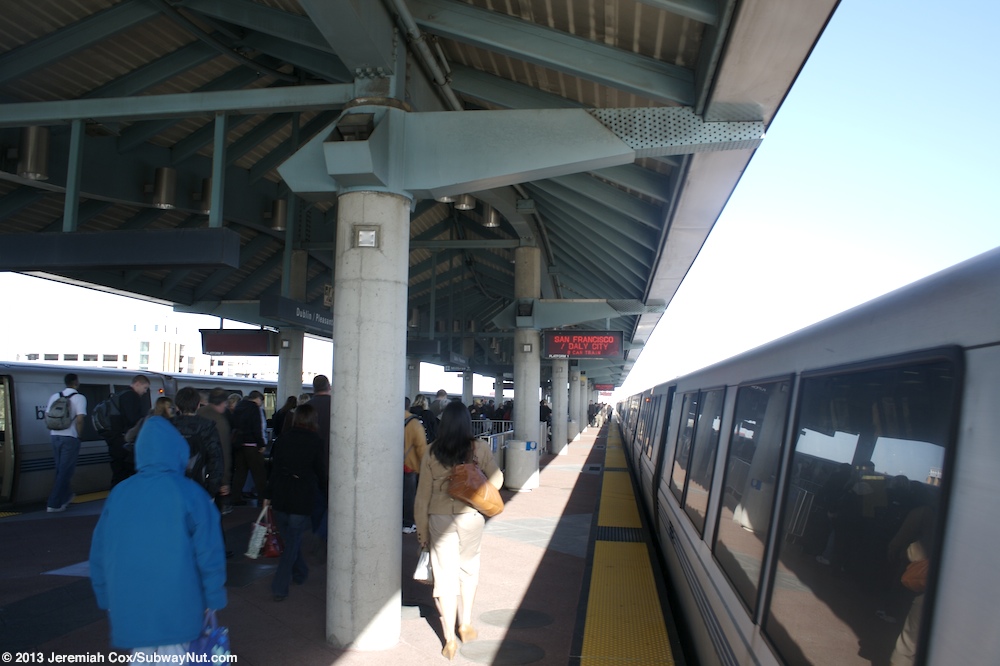

dublin_pleasanton2
The next train to San Francisco/Daly City is across the platform

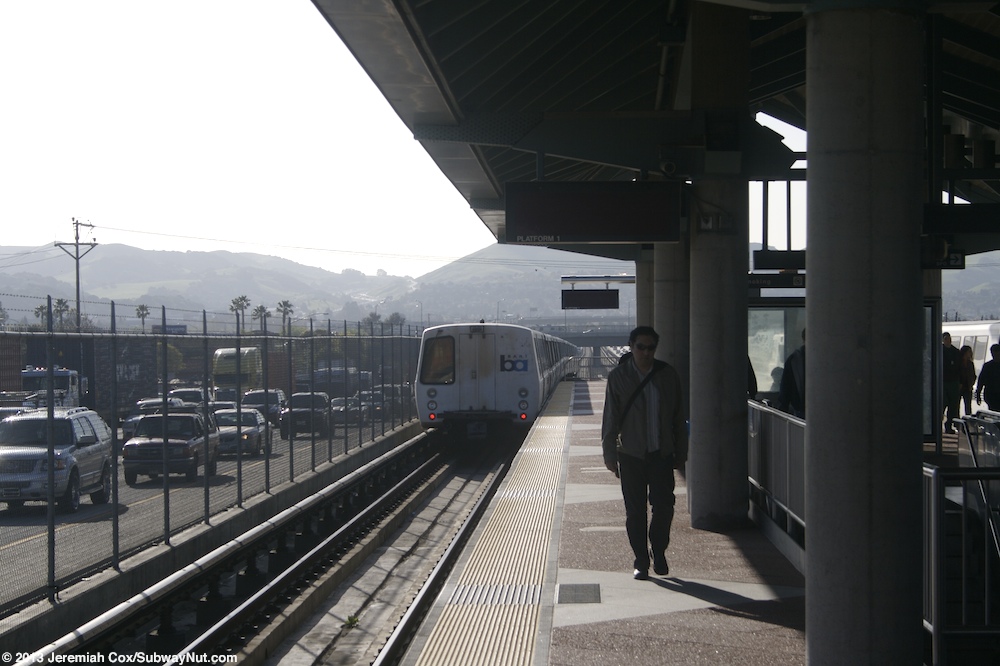

dublin_pleasanton3
A S.F./Daly City-bound train leaves

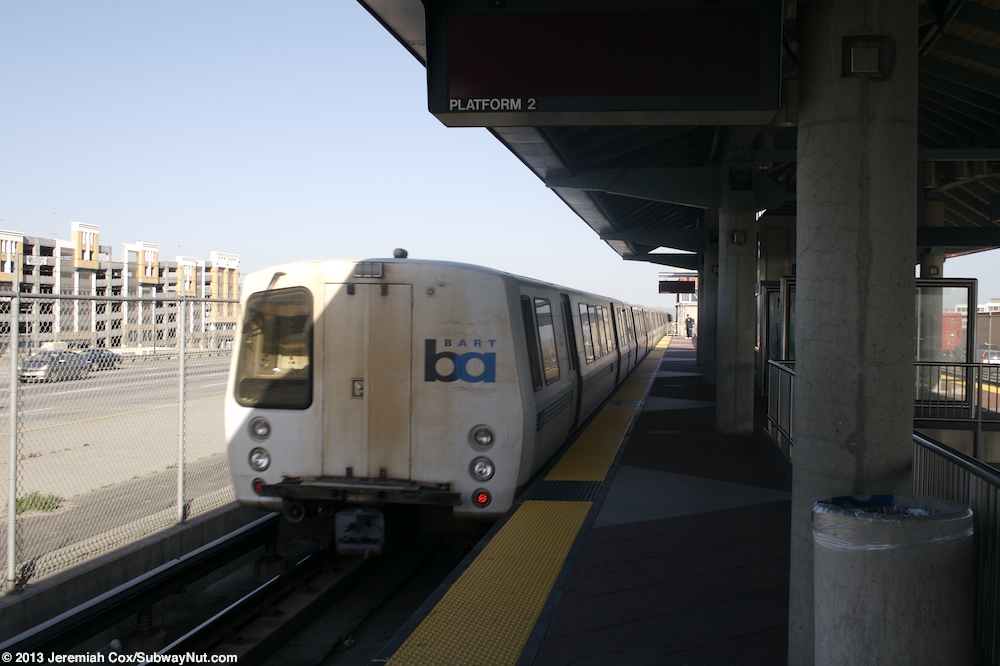

dublin_pleasanton4
A Not In Service Train leaves
dublin_pleasanton5

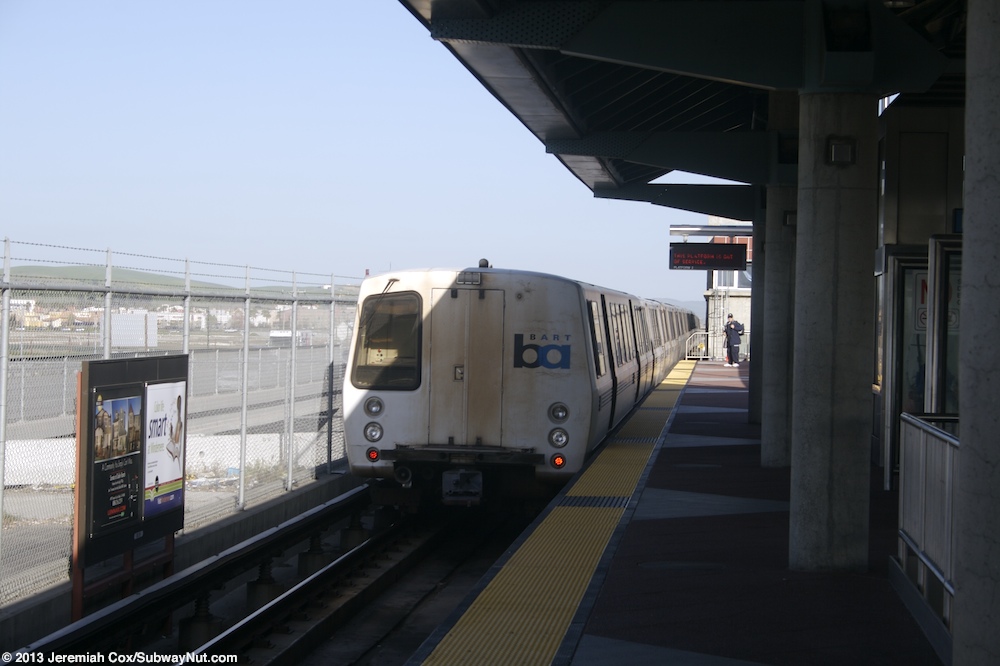

A train that has deposited its passengers leaves to go to the relay tracks
dublin_pleasanton6

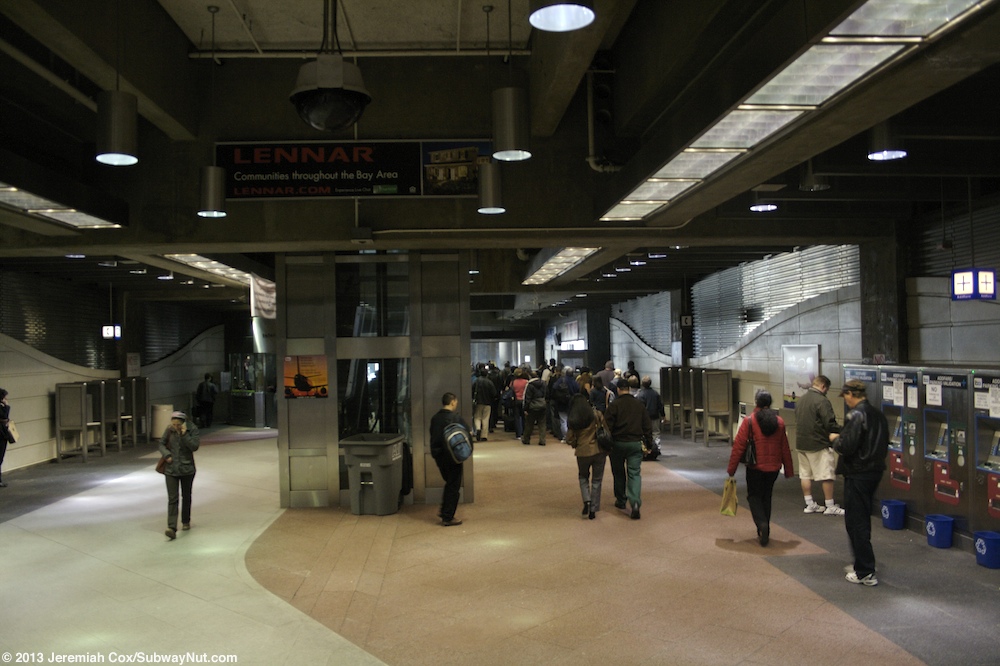

The fare control area is crowded with exiting passengers
dublin_pleasanton7

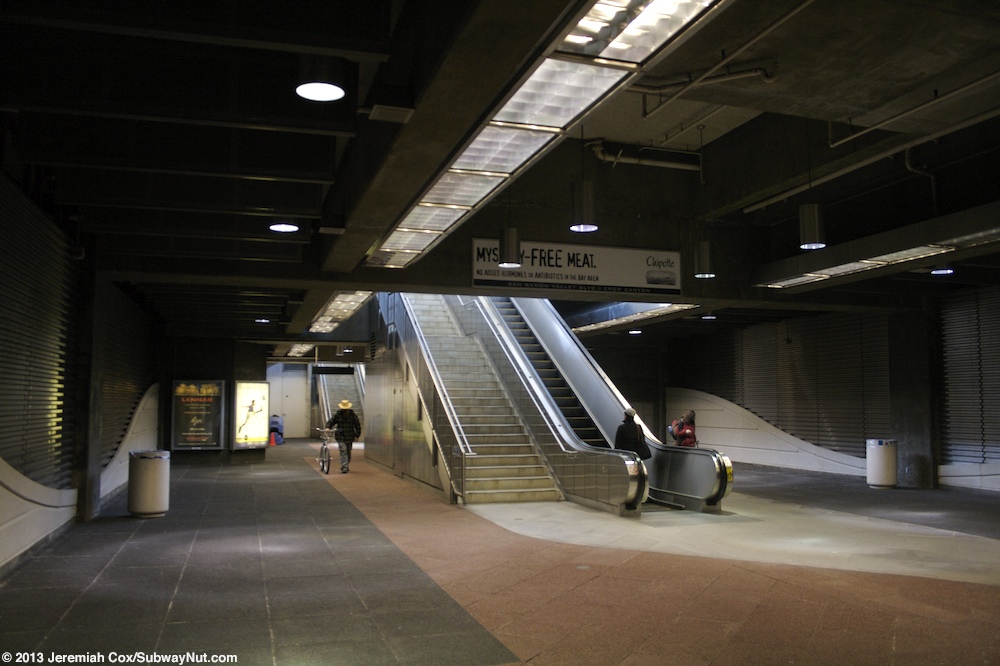

The stairs/escalators up to the platform from the under station and freeway
dublin_pleasanton8

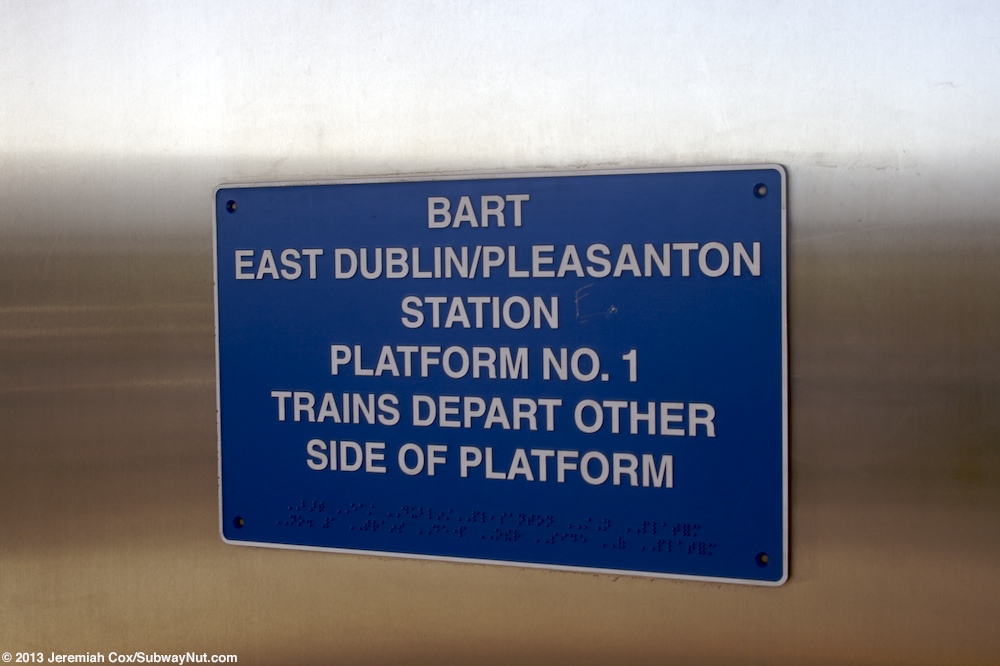

ADA sign that Trains Depart from the other side of the platform

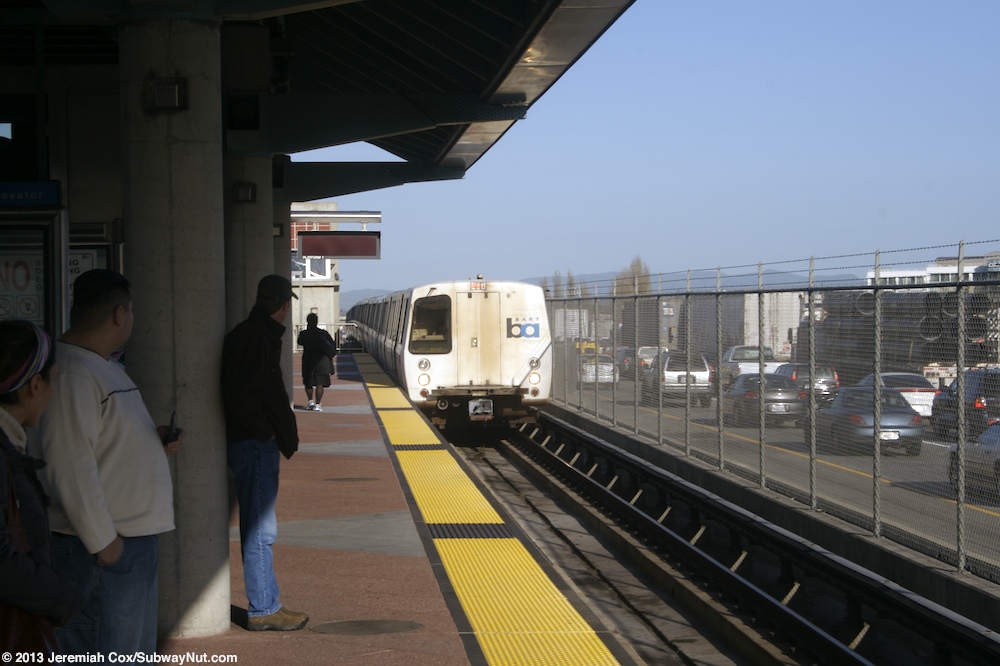

dublin_pleasanton9
The next entering service train enters the station

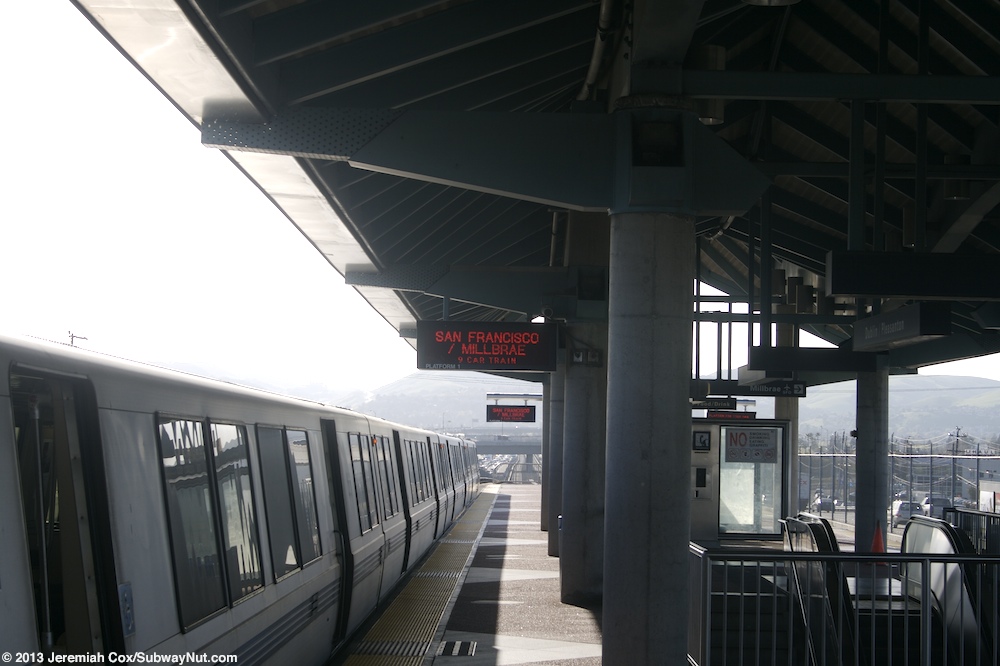

dublin_pleasanton10
This train is the first S.F./Millbrae Train of the post-PM rush hour (when it replaces the Richmond - Millbrae branch when it stops running in the evening)

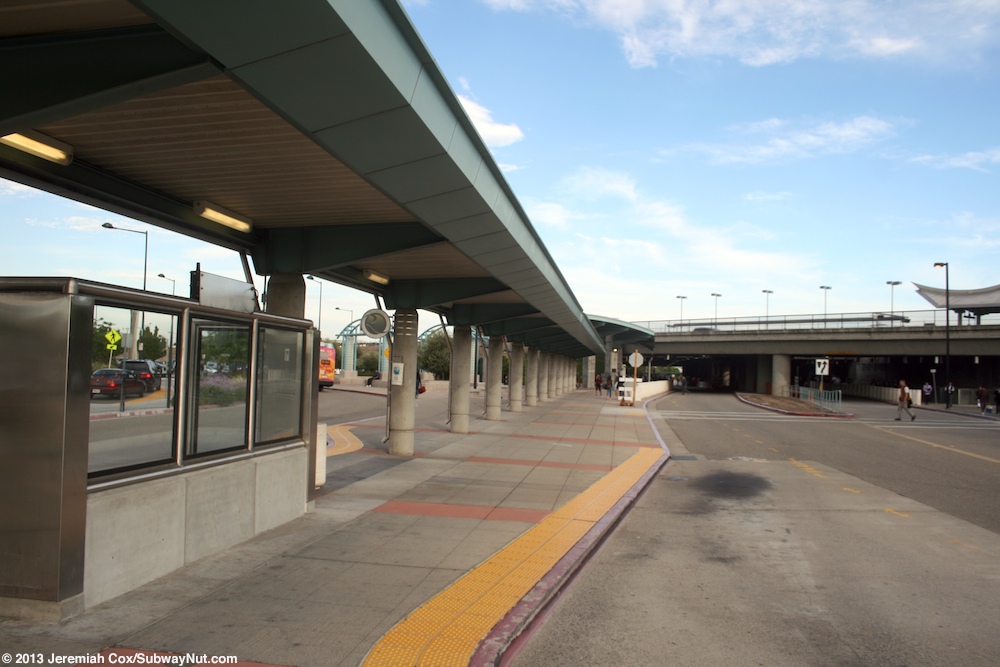

dublin_pleasanton11
Getting off the Wheels Rapid roof at the station's line of bus stops (that have tactile warning strips)

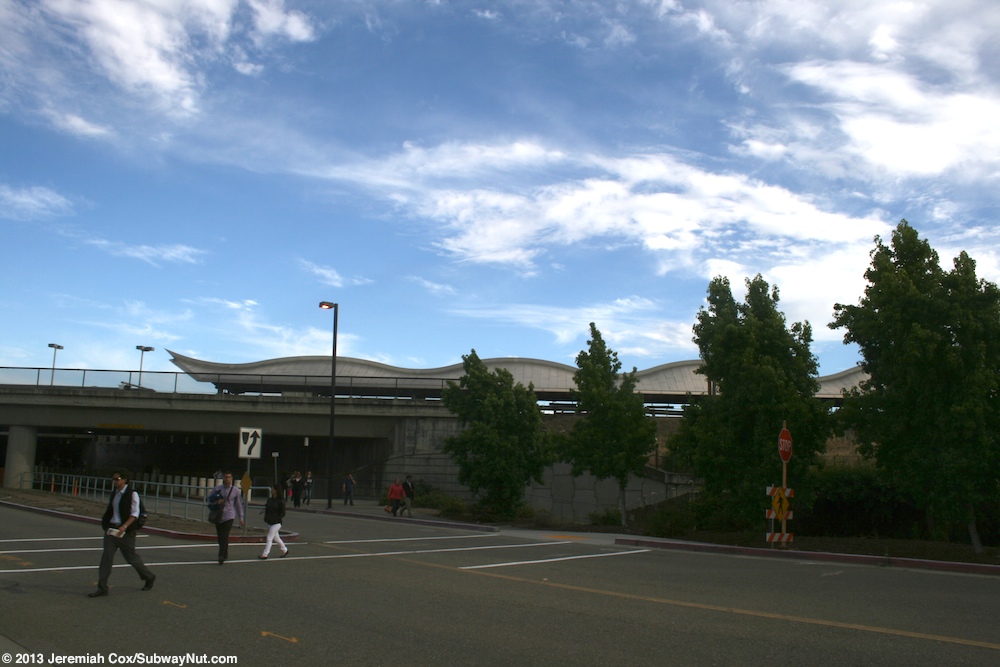

dublin_pleasanton12
The roofline of the station above the platform
dublin_pleasanton13

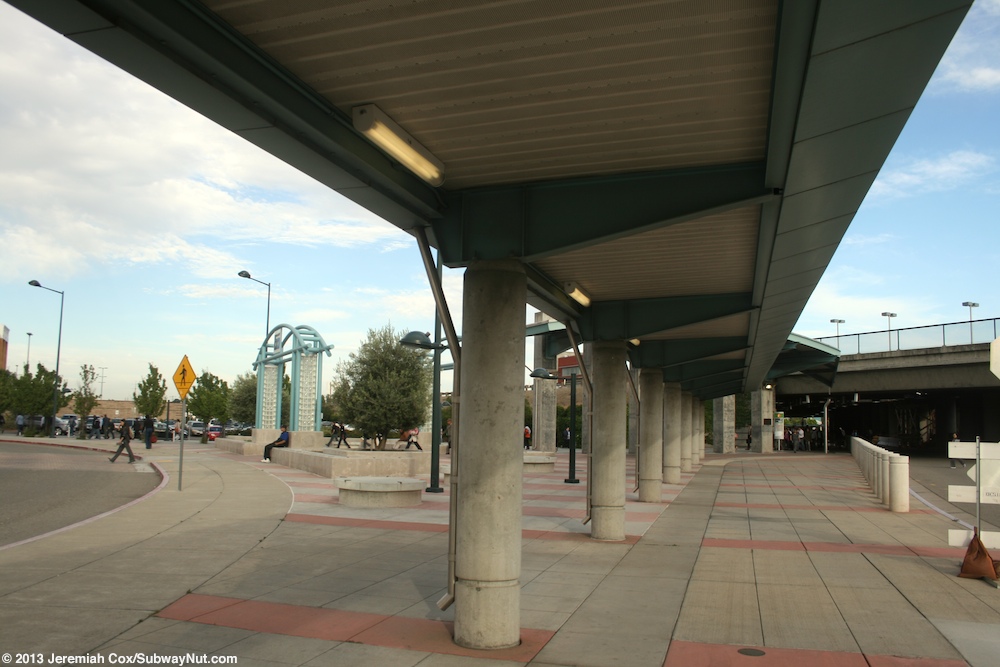

The long canopy of the bus loop

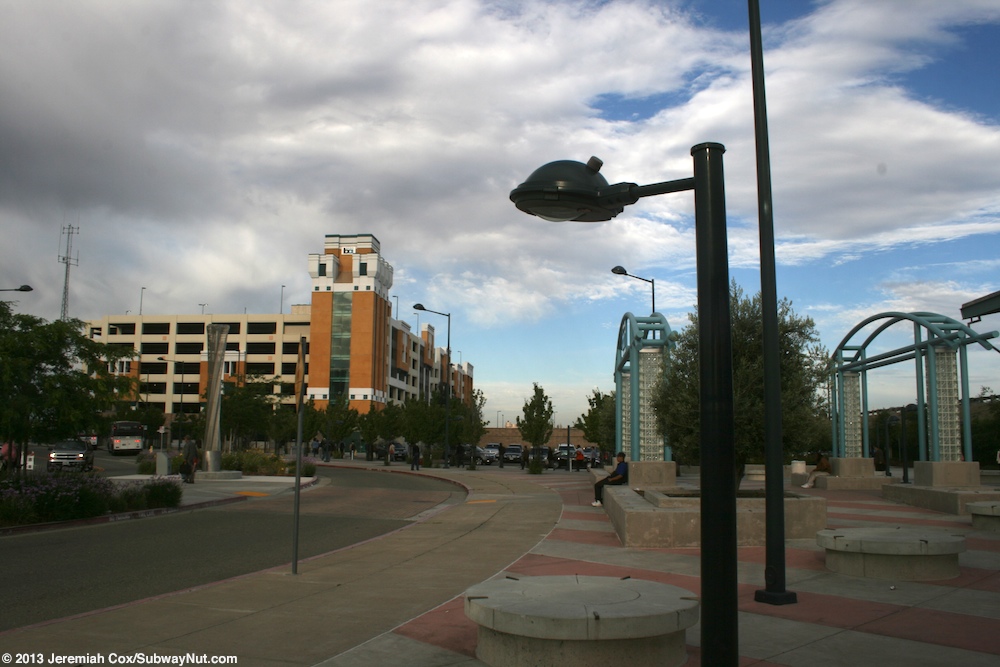

dublin_pleasanton14
The parking garage off in the distance from a small waiting for rides area

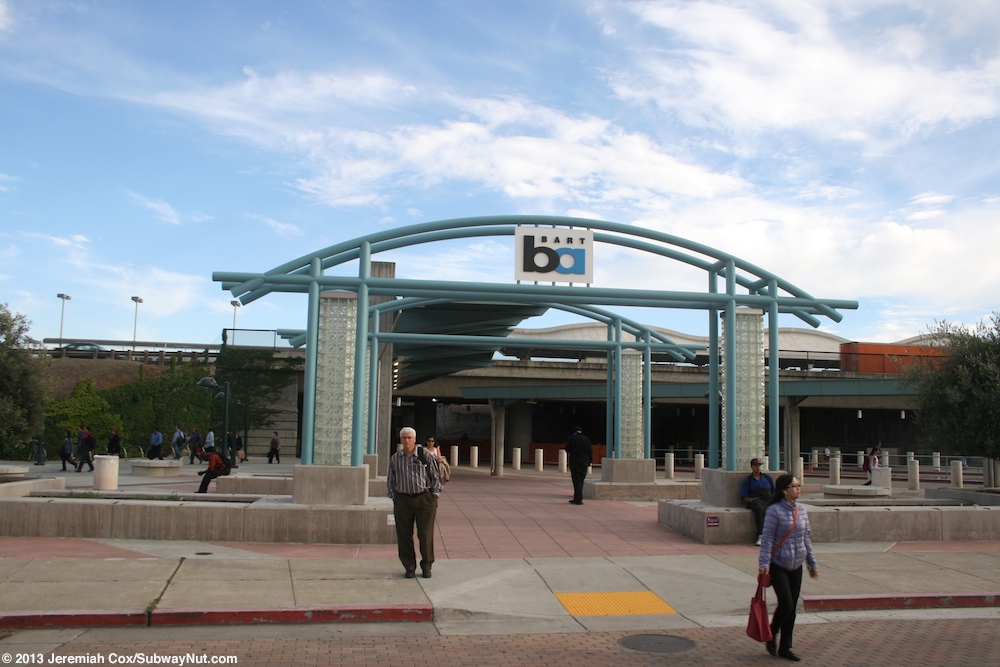

dublin_pleasanton15
Blue arches in the plaza outside the station
dublin_pleasanton16

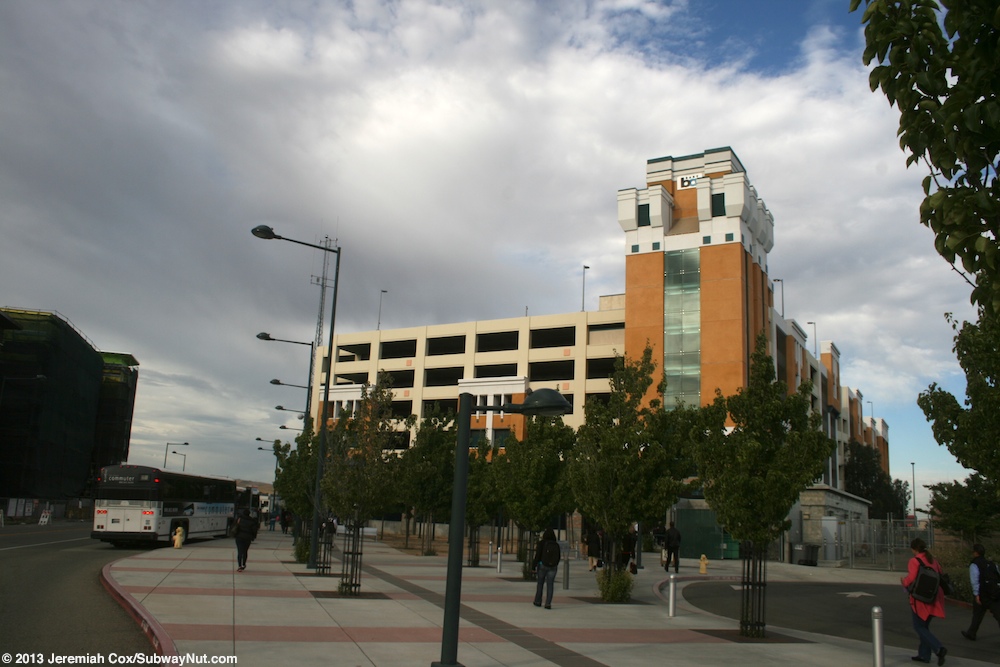

The 7 story parking garage (with BART logos above the elevator shaft) towers above the area
dublin_pleasanton17

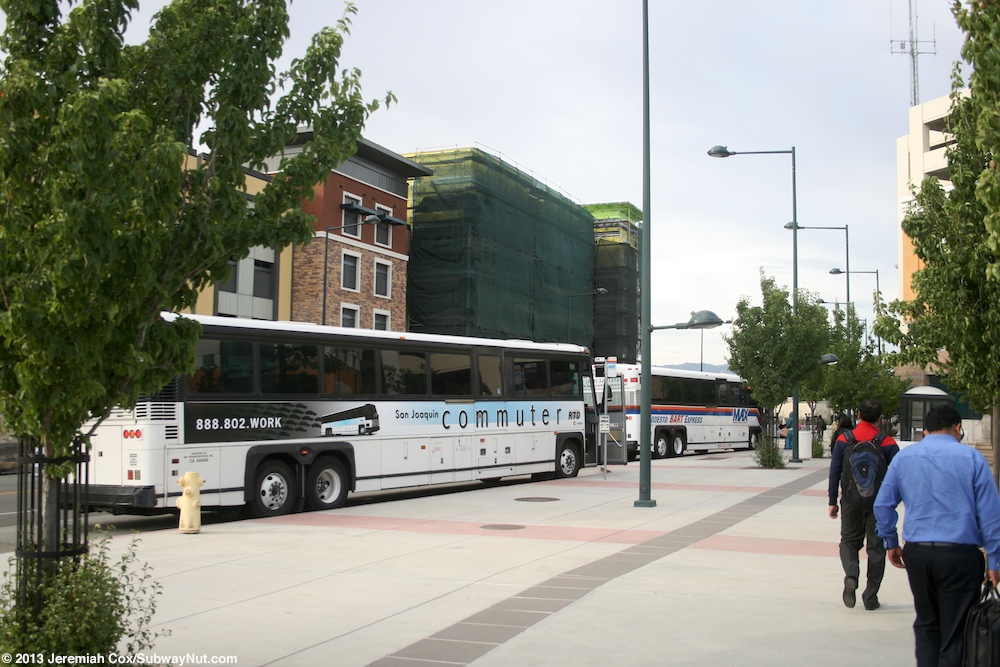

San Joaquin Commuter and MAX buses take commuters from the Central Valley home (they have up to nearly two more scheduled hours on their commutes in the case of Modesto)

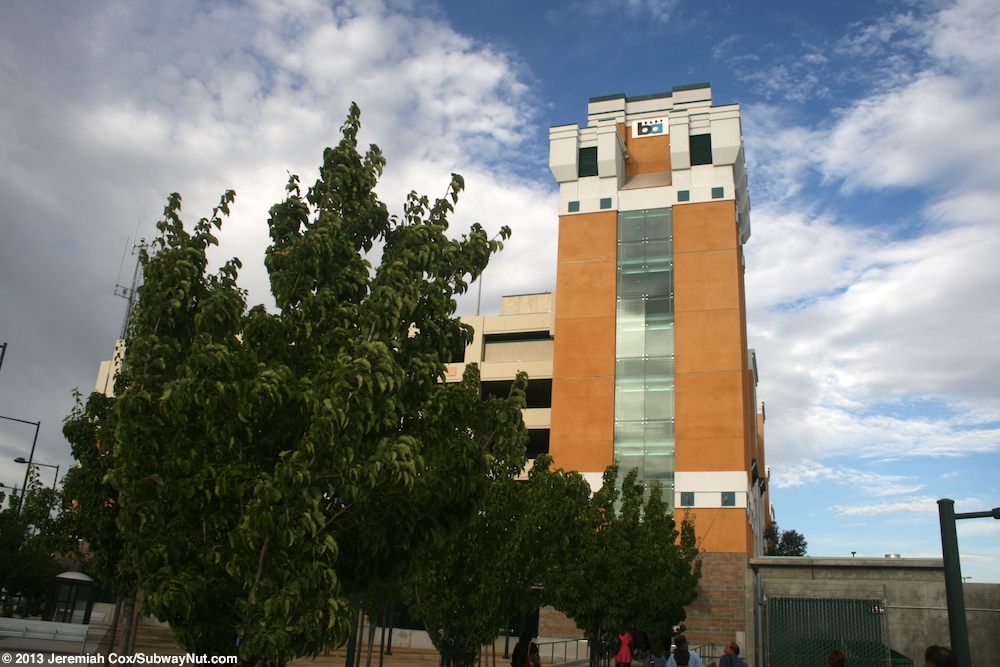

dublin_pleasanton18
Elevator shafts tower along the garage
dublin_pleasanton19

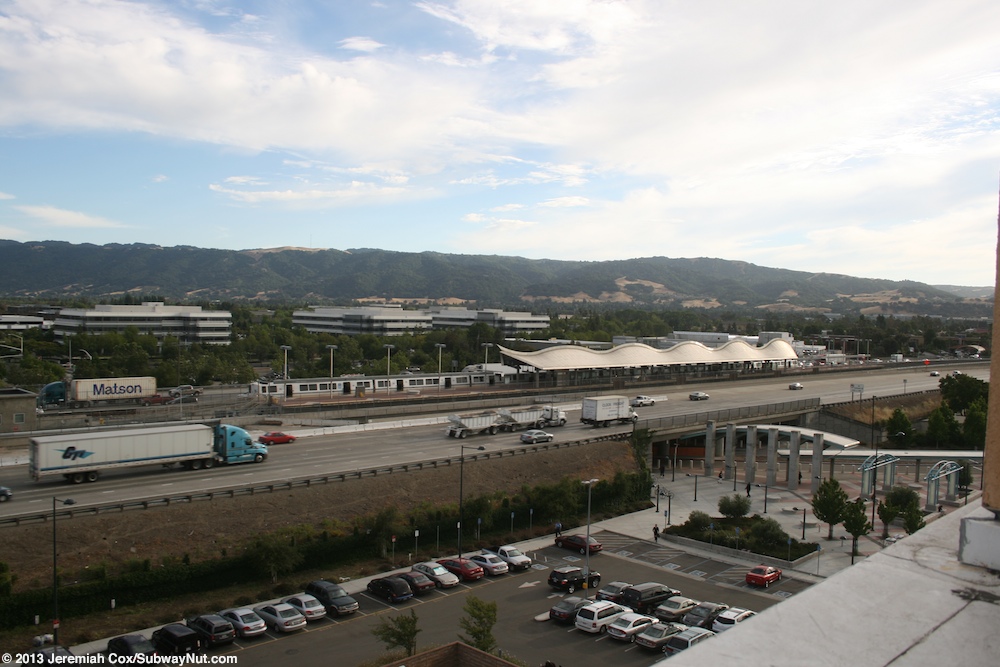

View of the freeway with the station in the middle of it from the top story of the parking garage

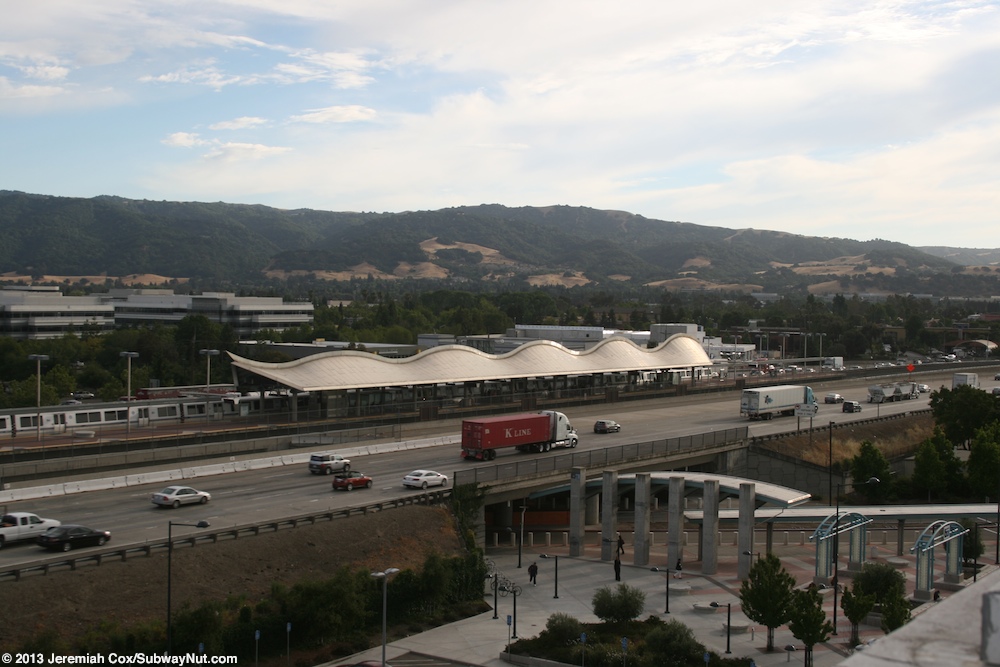

dublin_pleasanton20
The wavy platform canopy is visible
